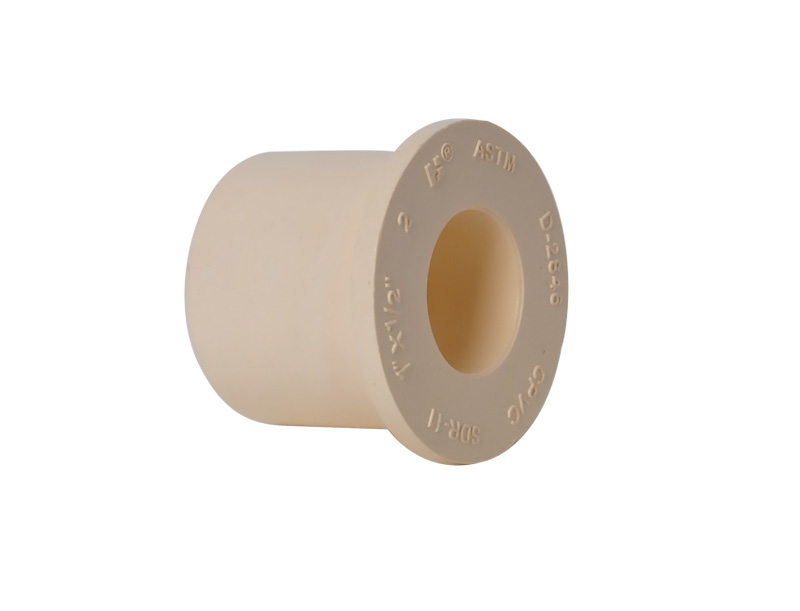

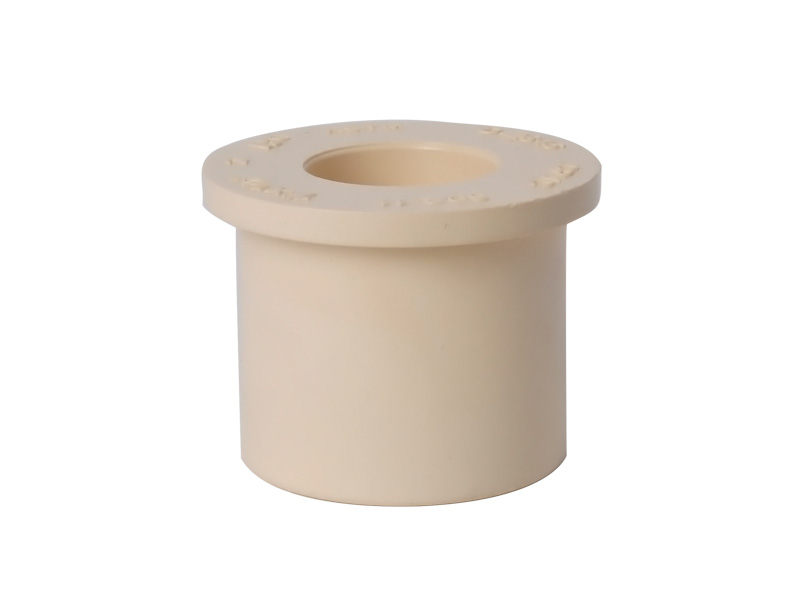

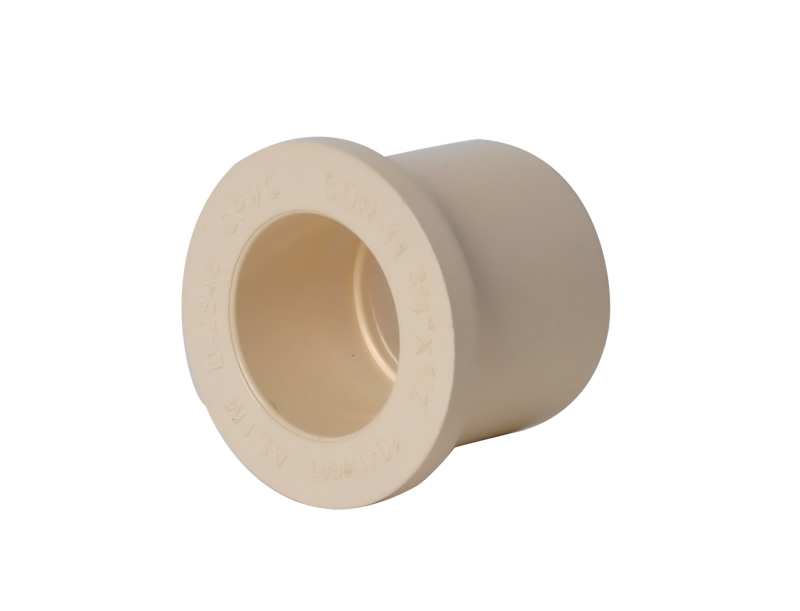

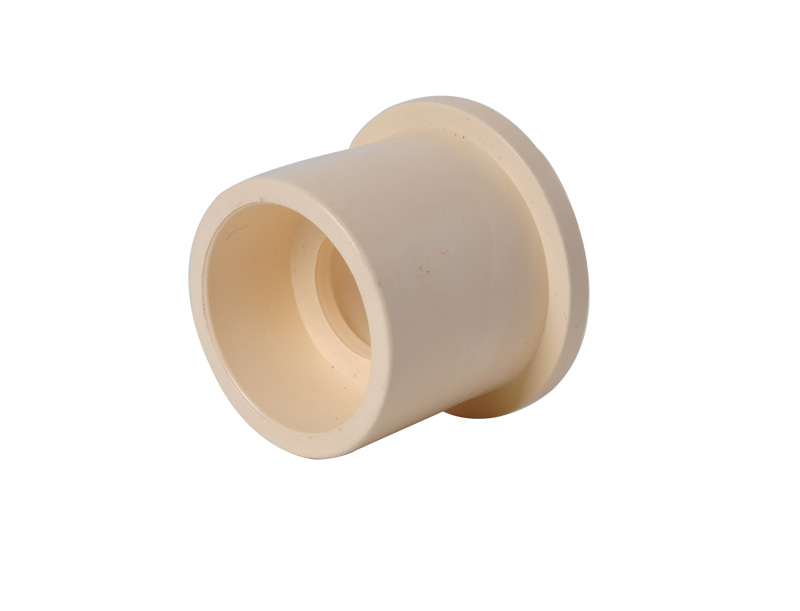

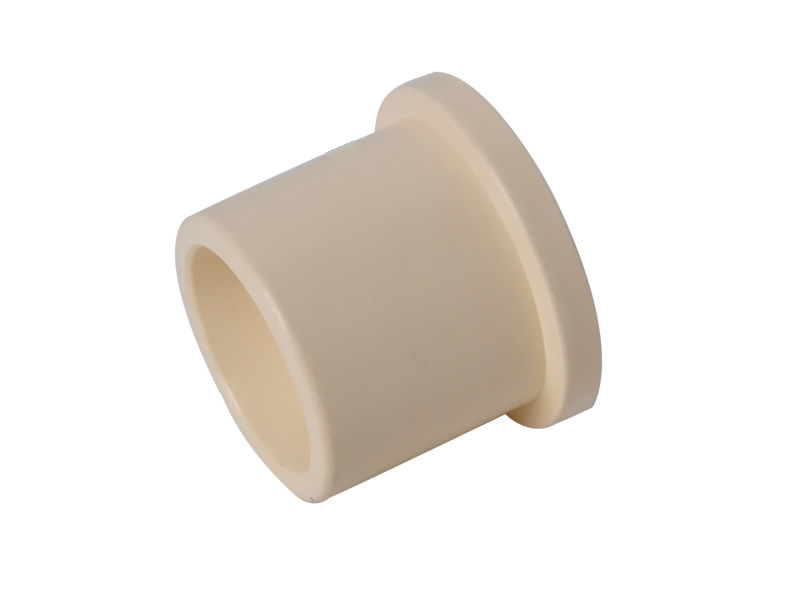

17.9mm~28.1mm cpvc pipe fittings

Place of Origin:Zhejiang, China
Brand Name:HJ
Model Number:B06
Material:Plastic, cpvc
Specification:all size avaliable
Length:17.9mm~28.1mm
Thickness:please contact us
Standard:DIN
Product name:cpvc pipe fittings
Application:hot water, water supply pipe and Manufacturer:Factory, top one in China
Supply Ability:12000 Carton/Cartons per Day

Product Details

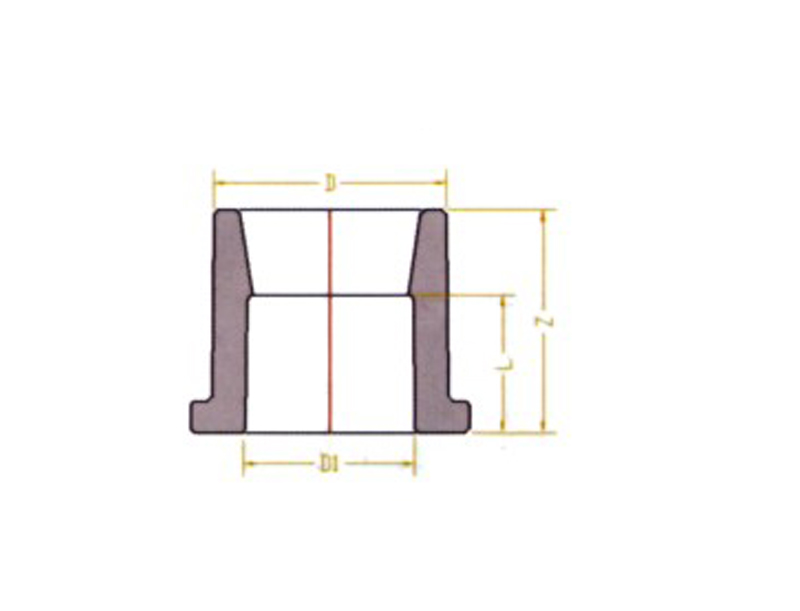

Size(mm)	3/4"×1/2"	1×1/2"	1"×3/4"	1-1/4"×1/2"	1-1/4"×3/4"	1-1/4"×1"	1-1/2"×1/2"	1-1/2"×3/4"
D(mm)	22.2	28.6	28.6	34.9	34.9	34.9	41.3	41.3
D1(mm)	15.9	15.9	22.2	15.9	22.2	28.6	15.9	222
L(mm)	17.9	23.0	23.0	17.9	23.0	28.1	17.9	23.0
Z(mm)	21.0	262	26.2	322	32.2	32.2	37.7	37.7

Size(mm)	1-1/2"×1"	1-1/2"×1"-1/4"	2"×1/2"	2"x3/4"	2"×1"	2×1-1/4"	2"×1-1/2"
D(mm)	41.3	41.3	54.0	54.0	54.0	54.0	54.0
D1(mm)	28.6	34.9	15.9	22.2	28.6	34.9	41.3
L(mm)	28.1	33.2	17.9	23.0	28.1	33.2	43.3
Z(mm)	37.7	37.7	48.0	48.0	48.0	48.0	48.0
