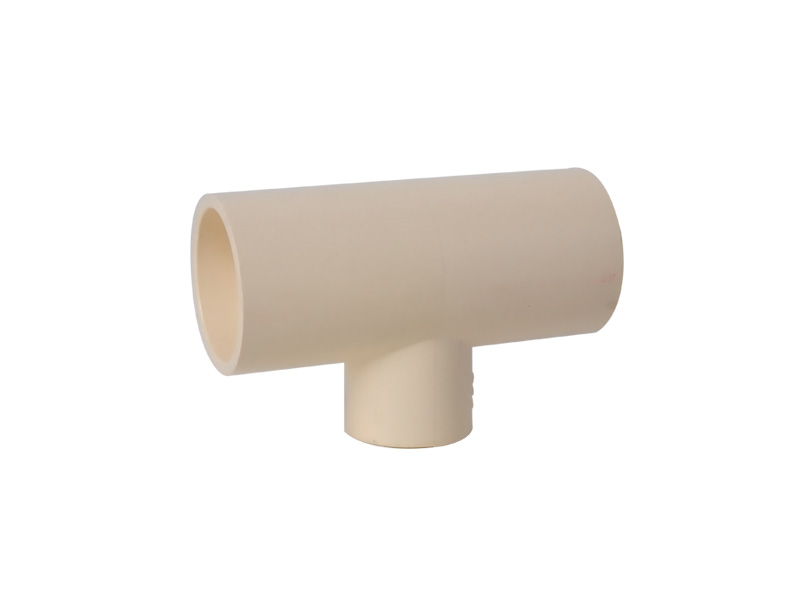

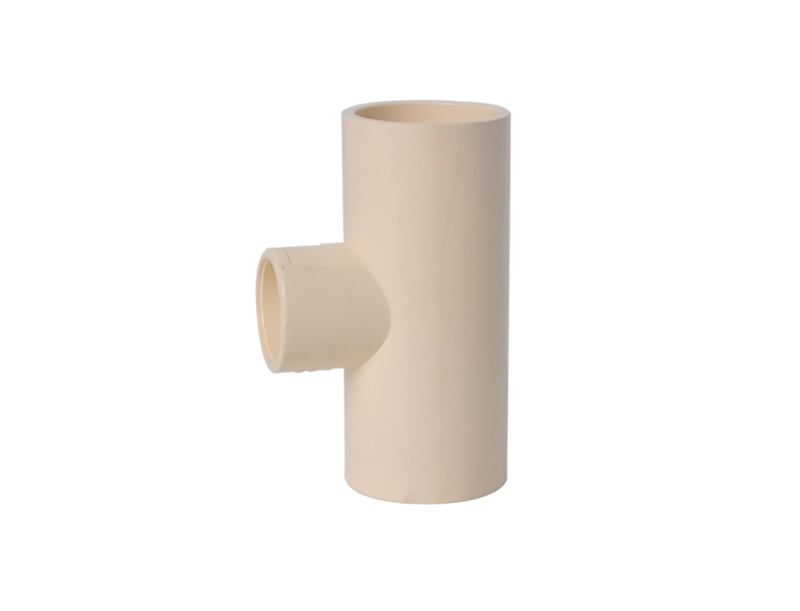

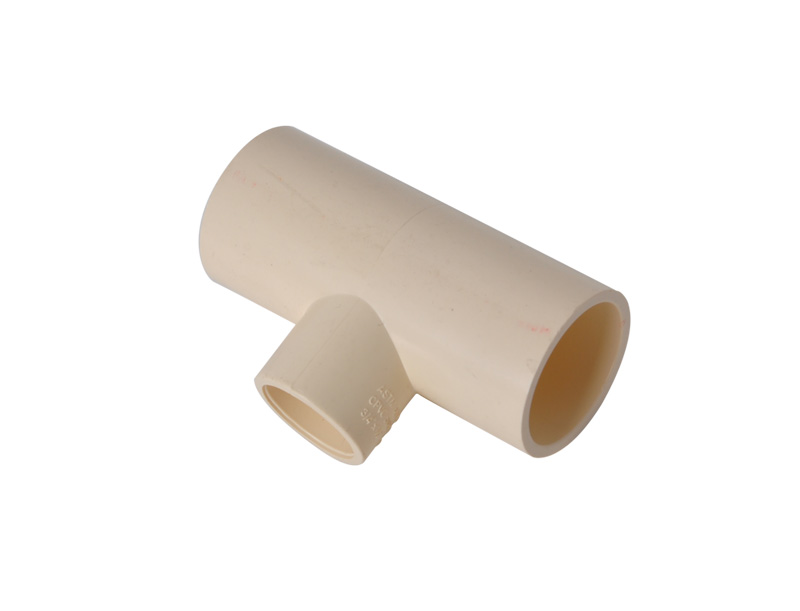

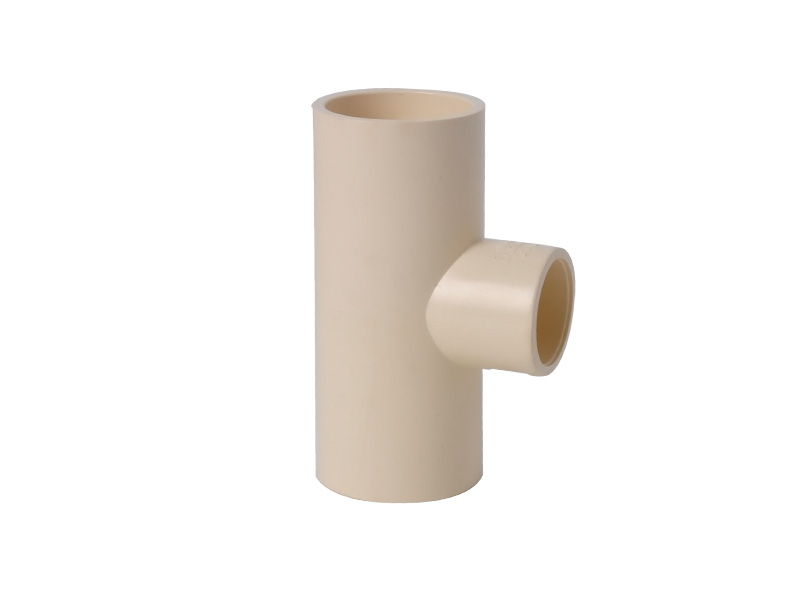

REDUCING TEE B12

Sizetmm)

3/4"x1/2"

1"x3/4"

1"x1/2"

1-1/4"×1"

1-1/4"x3/4"

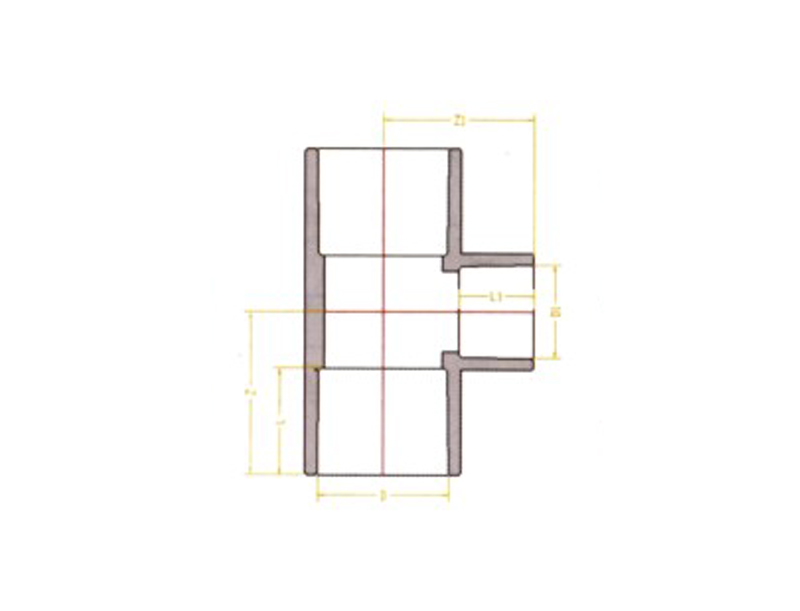

D(mm)

222

28.6

28.6

34.9

34.9

D1(mm)

15.9

22.2

15.9

28.6

22.2

L(mm)

17.9

23.0

23.0

28.1

28.1

L1(mm)

12.8

17.9

12.8

23.0

17.9

Z(mm)

28.0

36.2

33.0

44.5

40.7

Z1(mm)

26.0

34.5

39.2

42.5

37.9

Sizetmm)

1-1/2"x1-1/4"

1

-1/2"x1"

2"x1-1/2"

2"x1-1/4"

D(mm)

41.3

41.3

54.0

54.0

D1(mm)

34.9

28.6

41.3

34.9

L(mm)

33.2

33.2

43.3

43.3

L1(mm)

28.1

23.0

33.2

28.1

Z(mm)

52.6

49.5

66.3

63.2

Z1(mm)

50.5

45.5

61.8

56.7
