Brand Name:HJ
Model Number:J12
Size:1 1/2''-4''
Material:Plastic
Standard:DIN

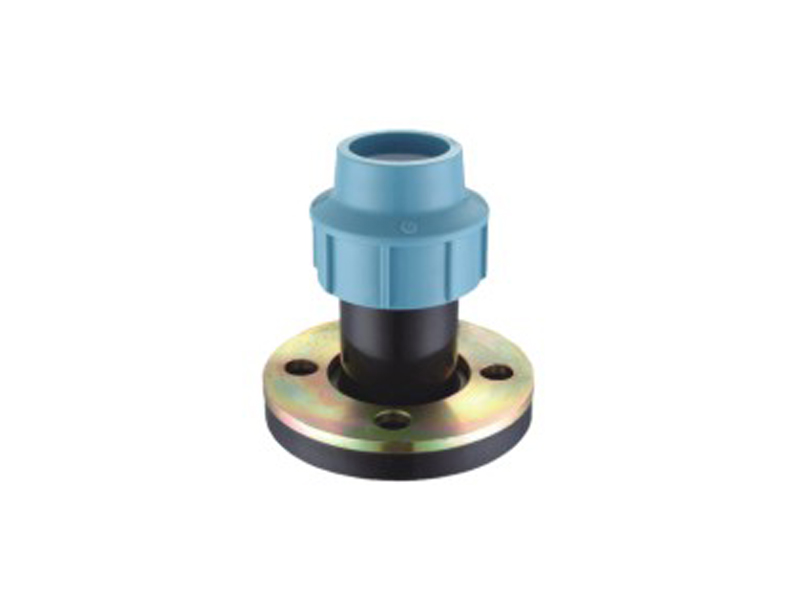

Product name:pipe flange
Application:water supply pipe and concection
Standard or Nonstandard:Standard
Supply Ability:12000 Carton/Cartons per Day
Packaging Details:The valve and fitting usually packed in carton or Bags. Customized packing is available
Port:Ningbo/Shanghai

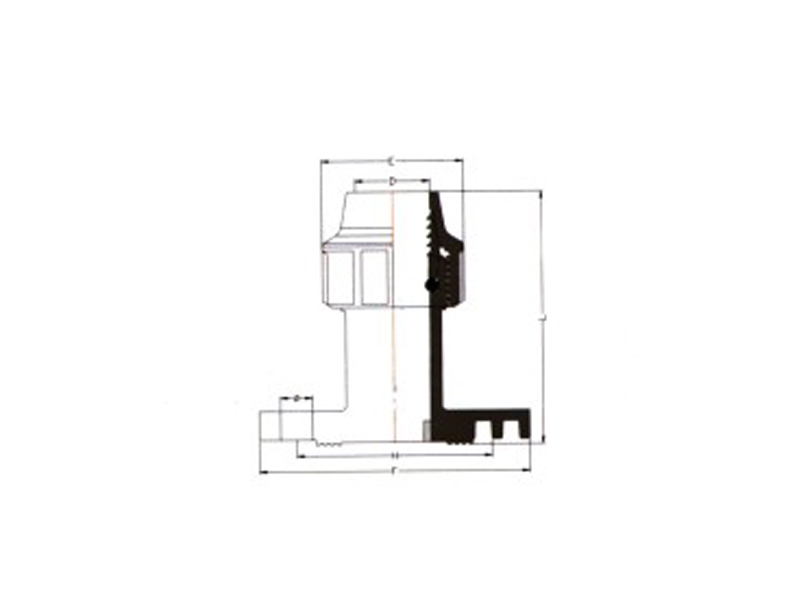

D |
DN |
PN |
E |
L |
F |
H |
40x1-1/2" |
32X40 |
16 |
80 |
140 |
152 |
110 |
50x1-1/2" |
40X40 |
16 |
96 |
165 |
152 |
110 |
50x2" |
40X50 |
16 |
96 |
165 |
164 |
125 |
63x2" |
50X50 |
16 |
115 |
194 |
164 |
125 |
63x2-1/2" |
50X65 |
16 |
115 |
194 |
184 |
145 |
75x2-1/2" |
65X65 |
10 |
129 |
209 |
184 |
145 |
75x3" |
65X80 |
10 |
129 |
209 |
200 |
160 |
90x3" |
80X80 |
10 |
155 |
229 |
200 |
160 |
90x4" |
80X100 |
10 |
155 |
229 |
220 |
180 |
110x4" |
100X100 |
10 |
184 |
256 |
220 |
180 |
