3"×2" pvc ball valves for water

Place of Origin:Zhejiang, China
Brand Name:HJ
Model Number:E06
Type:Coupling, Coupling, pipe fitting
Material:Plastic, Upvc
Technics:Injection
Connection:Welding
Shape:Reducing
Head Code:Round
Product name:reducing coupling
Application:water supply pipe and concection
Supply Ability:12000 Carton/Cartons per Day
Packaging Details:The valve and fitting usually packed in carton or Bags. Customized packing is available

Product Details

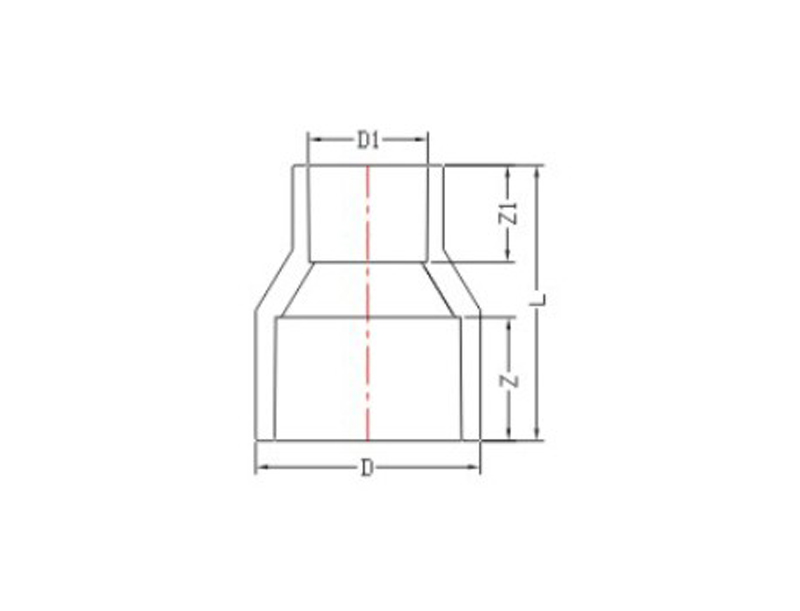

Size(mm)	3/4"×1/2	1"×1/2"	1"×3/4"	1-1/4"×3/4"	1-1/4"×1"	1-1/2"×1"	1-1/2"×1"-1/4"	2"×1-1/4"
D(mm)	26.67	33.40	33.40	42.16	42.16	48.26	48.26	60.30
L(mm)	60.0	63.0	67.5	75.0	69.0	77.0	83.5	89.0
Z(mm)	27.0	30.0	33.0	33.0	33.0	36.0	36.0	39.0
D1(mm)	21.34	21.34	26.67	26.67	33.40	33.40	42.16	42.16
Z1(mm)	24.0	24.0	27,0	27.0	30.0	30.0	33.0	33.0

Size(mm	2"×1-1/2	2-1/2"×1-1/2-	2-1/2"×2"	3"×2"	3"×2"-1/2"	4"×2-1/2"	4"×3"
D(mm)	60.32	73.02	73.02	88.90	88.90	114.30	114.30
L(mm)	94.0	99.0	102.0	106.5	115.5	124.5	130.0
Z(mm)	39.0	46.0	46.0	49.0	49.0	59.0	59.0
D1(mm)	49.26	48.26	60.32	60.32	73.02	73.02	88.90
Z1(mm)	36.0	36.0	39.0	39.0	46.0	46.0	49.0
