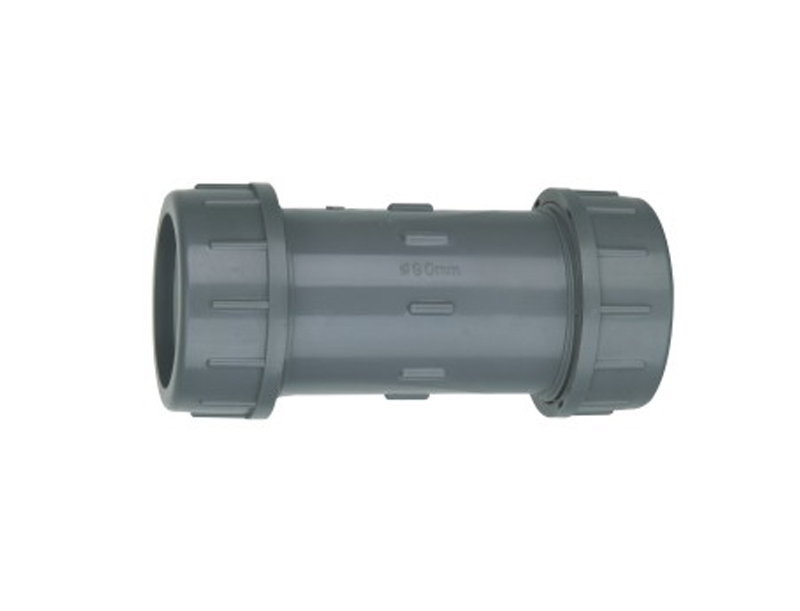

COMPRESSION COUPLING

COMPRESSION COUPLING

0
Views: 65
Contact Us

Product Details

SIZE: 1/2"-2"
END CONNECTOR: THREAD, SOCKET
WORKING PRESSURE:1.OMPA

Specification of material

NO.

PART

MATERIAL

Q'TY

1

Body

PVC

1

2

Union Nut

PVC

2

3

Seat

EPDM、FPM(NBR)

2

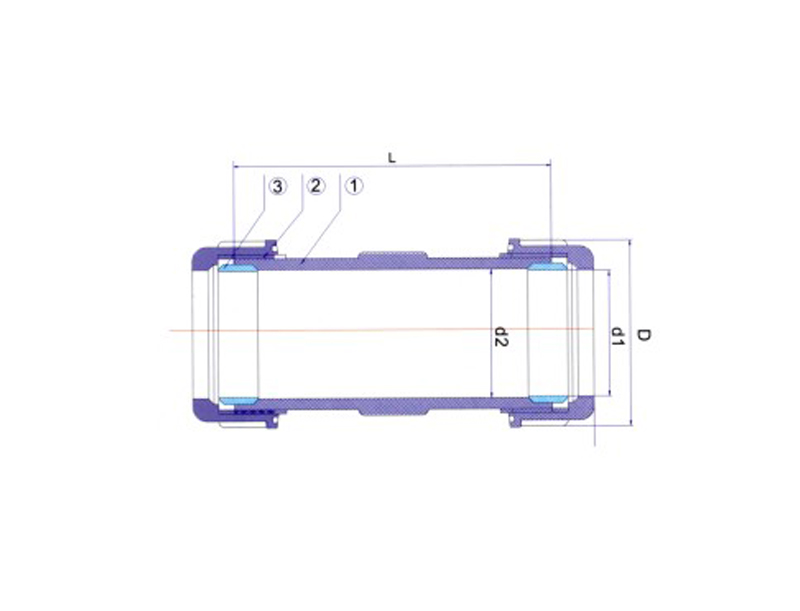

Dimensions















size

nom,

DIN/GB
d1

BS
d1

ANSI
d1

JIS
d1

d2

D

L

15mm(1/2")

20

22

21.34

22

23

39

105

20mm(3/4")

25

26

26.67

26

28

46

112

25mm(1")

32

34

33.4

32

36

53

122

32mm(11/4")

40

42

42.16

38

44

61

143

40mm(11/2")

50

48

48.26

48

52

75

164

50mm(2")

63

60

60.33

60

64.5

90

195

65(21/2")

75

76

73.03

76

78

108

220

80mm(3")

90

89

88.9

89

93

121

268

100mm(4")

110

114

114.3

114

117.2

143

330

125mm(5")

125







128.5

164

326

160mm(6")

160

168.3

168.3

165

163

207

384
