SIZE: 1/2"-4"
END CONNECTOR: THREAD, SOCKET
WORKING PRESSURE:1.OMPA
|

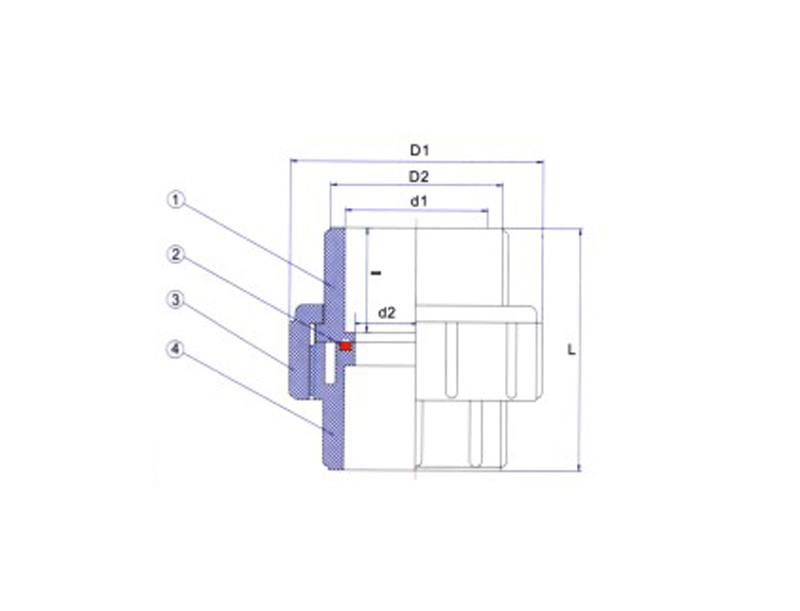

Specification of material
|
|
NO.
|
PART
|
MATERIAL
|
Q'TY
|
|
1
|
End Connector
|
PVC.CPVC
|
1
|
|
2
|
O-Ring
|
EPDM、FPM(NBR)
|
1
|
|
3
|
Union Nut
|
PVC.CPVC
|
1
|
|
4
|
Body
|
PVC.CPVC
|
1
|
|
Dimensions
|
|
|
OIN/GB
d1
|
BS
d1
|
ANSI
d1
|
JIS
d1
|
BSPT NPT
Thd./ln Thd./ln
|
d2
|
D2
|
D1
|
I
|
L
|
|
DN15mm(1/2")
|
20
|
22
|
21.34
|
22
|
14 14
|
14
|
25
|
40
|
21
|
49
|
|
DN20mm(3/4")
|
25
|
26
|
26.67
|
26
|
14 14
|
19
|
32
|
48
|
22
|
53
|
|
DN25mm(1")
|
32
|
34
|
33.4
|
32
|
11 11.5
|
24
|
40
|
55
|
28
|
62
|
|
DN32mm(1-1/4")
|
40
|
42
|
42.16
|
38
|
11 11.5
|
32
|
52
|
70
|
29
|
65
|
|
DN40mm(1-1/2")
|
50
|
48
|
48.26
|
48
|
11 11.5
|
40
|
60
|
81
|
30
|
80
|
|
DN50mm(2")
|
63
|
60
|
60.33
|
60
|
11 11.5
|
45
|
72
|
100
|
38
|
95
|
|
DN65(2-1/2")
|
75
|
76
|
73.03
|
76
|
11 8
|
60
|
90
|
129
|
40
|
109
|
|
DN80mm(3")
|
90
|
89
|
88.9
|
89
|
11 8
|
80
|
103.5
|
145.5
|
48
|
125.5
|
|
DN100mm(4')
|
110
|
114
|
114.3
|
114
|
11 8
|
100
|
132.5
|
175
|
60
|
160
|
