Best price all size available plastic pvc butterfly valve Suppliers

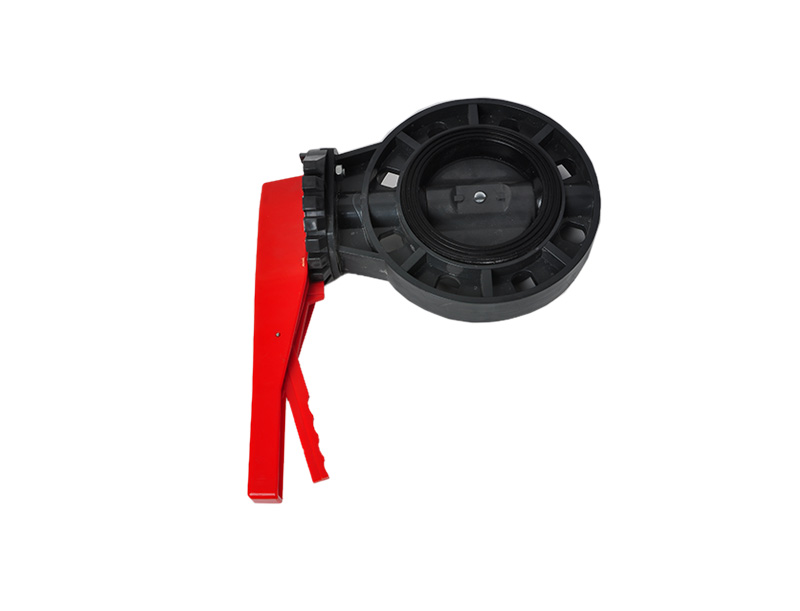

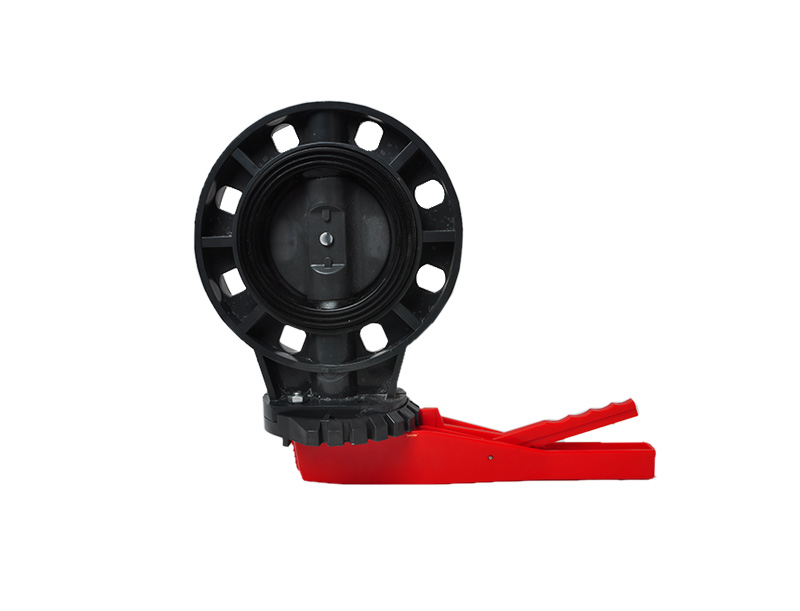

Best price all size available plastic pvc butterfly valve

Best price all size available plastic pvc butterfly valve

Place of Origin:Zhejiang, China
Brand Name:HJ
Model Number:PVC butterfly valve
Application:General, water system
Material:Plastic, PVC
Temperature of Media:Medium Temperature
Pressure:Medium Pressure
Power:Hydraulic
Media:Water
Port Size:2"-8"
Structure:Butterfly
Product name:ball valve dn20
Type:PVC butterfly valve
Standard or Nonstandard:Standard
Supply Ability:12000 Carton/Cartons per Day

0
Views: 189
Contact Us

Product Details

SIZE: 1/2"-8"

END CONNECTOR: FLANGE

WORKING PRESSURE:1 ,0MPA



Specification of material

NO.

PART

MATERIAL

Q'TY

NO.

PART

MATERIAL

Q'TY

1

Body

PVC

1

9

Small Handle

ABS

1

2

Seat Seal

EPDM、FPM(NBR)

1

10

Spring

SUS304

1

3

Gate

PVC

1

11

Pin

SUS304

1

4

Stem

SUS410

1

12

Bolt

SUS304

1

5

O-Ring

EPDM.FPM(NBR)

2

13

Handle Cap

ABS

1

6

Washer

ABS

1

14

Insered Bolt

SUS304

4

7

Locking Plate

PVC

1

15

Bolt cap

PVC

4

8

Large Handle

ABS

1

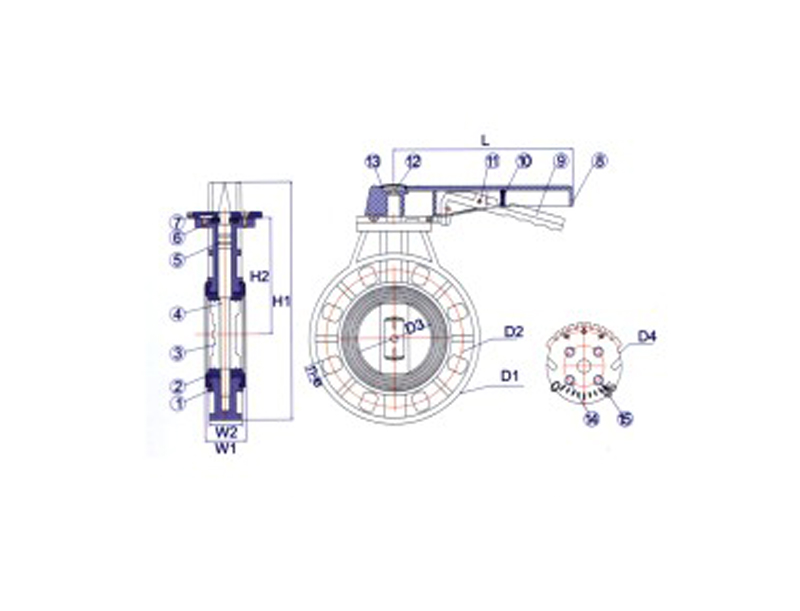

Dimensions



D1

DIN/GB
d1

JIS
d1

ANSI
d1

D3

D4

L

H1

H2

W1

W2

DIN
n-φe

JIS
n-φe

ANSI

n-φe

DN50mm(2")

160.1

120

100

120.4

55.6

99.7

189.7

223.3

98.3

44

32

4-20

4-19

4-19

DN65(2-1/2")

179.8

141.2

140

139.5

68.7

99.7

189.0

247.0

111.6

48.3

32.4

4-18

4-19

4-19

DN80mm(3")

195.0

156.4

140

139.5

83.9

99.7

238.5

282.6

132.5

51.9

36.3

8-20

4-19

4-19

DN100mm(4")

228.1

183

150

152.4

103.2

99.7

239.5

319.4

155.4

54.5

44.1

8-20

8-19

8-19

DN125mm(5")

257

210.9

175

190.5

129.5

139

309.8

368

170.3

66.5

54.6

8-21.5

8-19

8-19

DN150mm(6")

285.4

238.5

240

241.5

151.1

140.0

309.8

400.8

187.5

73.1

56.4

8-24

8-23

8-22

DN200mm(8")

342.6

292.4

295

298.5

198.6

140.0

309.8

473.0

230.1

92.0

72.2

8-24

12-23

8-23
