FOOT VALVE

FOOT VALVE

0
Views: 30
Contact Us

Product Details

SIZE:2  1/2"-6"

END CONNECTOR: THREAD, SOCKET

WORKING PRESSURE:1.0MPA

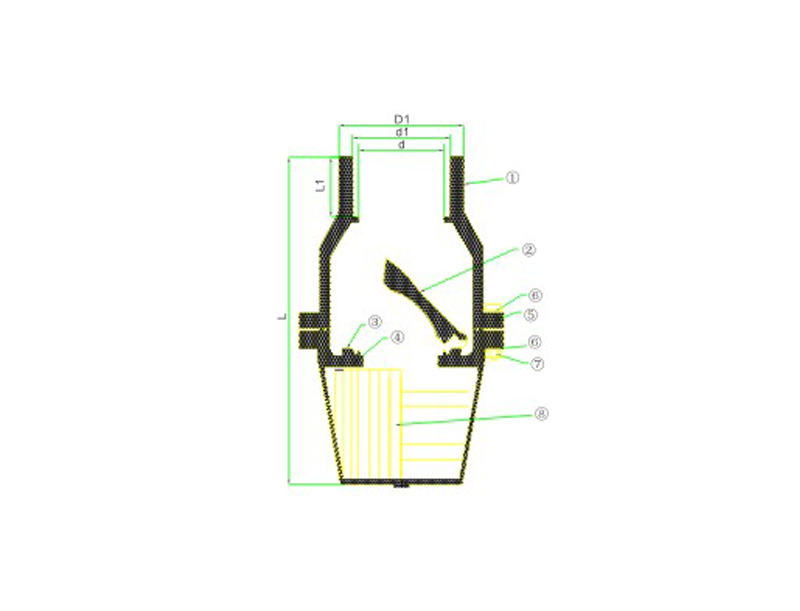

Specification of material

NO.

PART

MATERIAL

Q'TY

1

Exit Body

PVC

1

2

Gate

PVC

1

3

Disk

PVC

1

4

Sheet Gasket

EPDM、FPM(NBR)

1

5

Bolt

SUS304

1

6

Body

SUS304

2

7

Washer

SUS304

1

8

Entrance Body

PVC

1



Dimensions

size

nom

DIN/GB
d1

BS
d1

ANSI
d1

JIS
d1

d

D1

L1

L

65(2-1/2")

75

76

73.03

76

68.3

90

43

248

80mm(3")

90

89

88.9

89

85

105

57

295

100mm(4")

110

114

114.3

114

96

129

61

340

150mm(6")

160

168.3

168.3

165

152

181

89

458
