Place of Origin:Zhejiang, China
Brand Name:HJ
Model Number:foot valve
Application:General, water system
Material:Plastic, PVC
Temperature of Media:Medium Temperature
Pressure:Medium Pressure
Power:Hydraulic
Media:Water
Port Size:1/2"-2"
Structure:Root
Product name:pvc foot valve
Type:plastic pvc foot valve
End connector:Thread, socket
Working pressure:1.0MPA
Standard or Nonstandard:Standard
Supply Ability:12000 Carton/Cartons per Day
Packaging Details:The valve and fitting usually packed in carton or Bags. Customized packing is available
Port:Ningbo/Shanghai
Lead Time:2-4 weeks
SIZE: 1/2"-2"
END CONNECTOR: THREAD, SOCKET
WORKING PRESSURE:1.0MPA

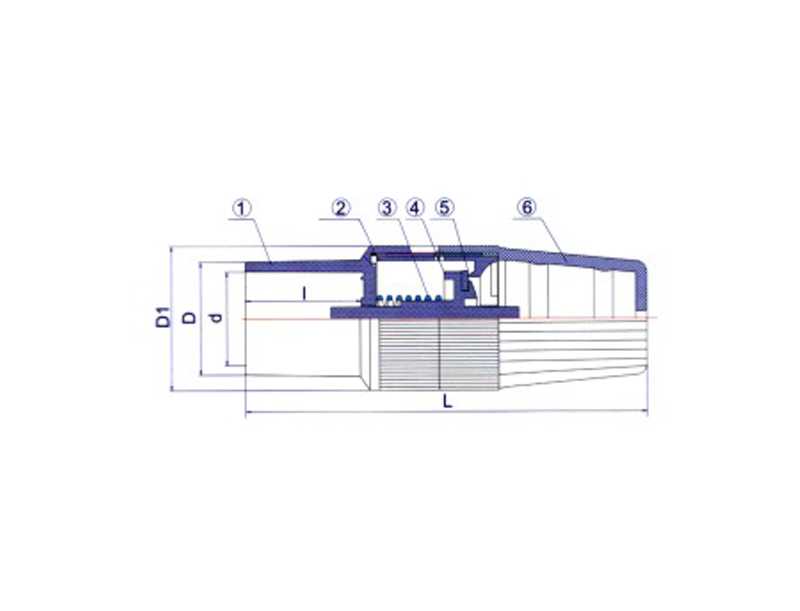

Specification of material |
|||
NO. |
PART |
MATERIAL |
QTY |
1 |
Body |
PVC |
1 |
2 |
Connector |
EPDM, FPM(NBR) |
1 |
3 |
Spring |
STAINLESS STEEL |
1 |
4 |
Gate |
PVC |
1 |
5 |
Seal |
EPDM, FPM(NBR) |
1 |
6 |
Body |
PVC |
1 |
Dimensions |
||||||||||
Size nom |
DIN/GB |
BS |
ANSI |
JIS |
BSPT |
NPT |
D |
D1 |
I |
L |
DN15mm(1/2") |
20 |
22 |
21.34 |
22 |
14 |
14 |
31 |
43.7 |
31.0 |
137 |
DN20mm(3/4") |
25 |
26 |
26.67 |
26 |
14 |
14 |
35.5 |
43.7 |
32.5 |
141 |
DN25mm(1") |
32 |
34 |
33.4 |
32 |
11 |
11.5 |
41 |
55.1 |
35 |
148 |
DN32mm(1-1/4") |
40 |
42 |
42.16 |
38 |
11 |
11.5 |
50 |
79 |
47 |
195 |
DN40mm(1-1/2") |
50 |
48 |
48.26 |
48 |
11 |
11.5 |
63 |
92 |
41 |
205 |
DN50mm(2") |
63 |
60 |
60.33 |
60 |
11 |
11.5 |
75 |
105 |
52 |
226 |
