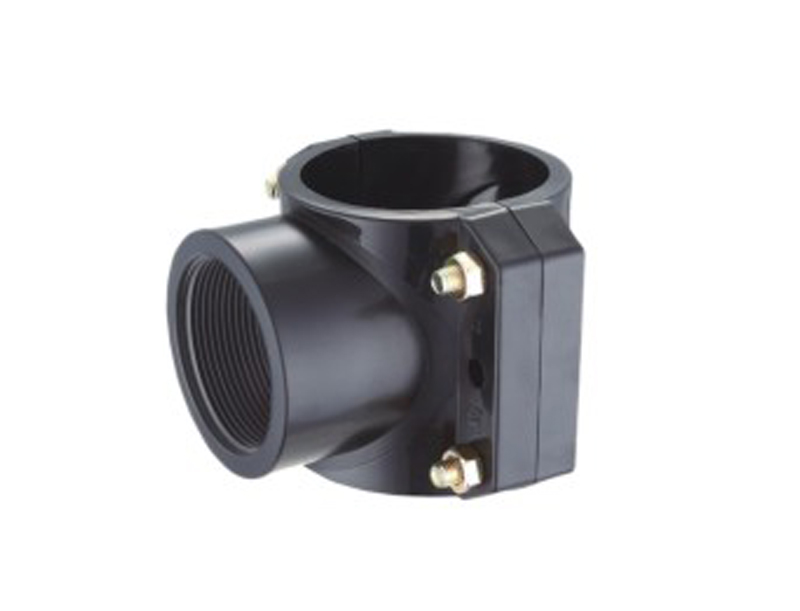

32×1/2" pp compression water system pipe fittings saddle clamp

Brand Name:HJ
Model Number:J15
Type:pipe saddle, pipe saddle clamp
Material:Plastic, pp
Technics:Injection
Connection:Welding
Shape:clip
Head Code:Round
Product name:pipe saddle clamp
Standard:pp compression fitting
Application:water supply pipe and concection
Supply Ability:12000 Carton/Cartons per Day
Packaging Details:The valve and fitting usually packed in carton or Bags. Customized packing is available
Port:Ningbo/Shanghai

Product Details

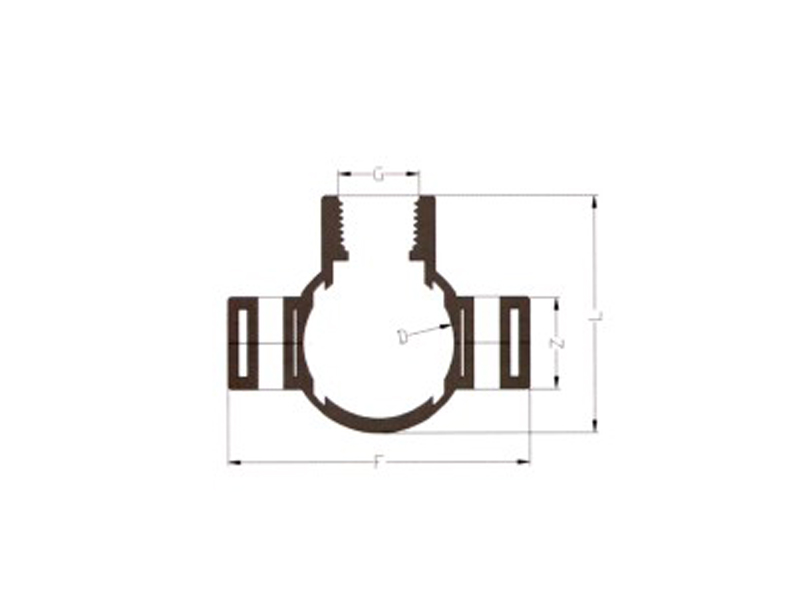

D×G	DN	PN	L	Z	F
25×1/2"	20×15	16	58	30	78
25×3/4"	20×20	16	58	30	78
32×1/2"	25×15	16	58	30	78
32×3/4"	25×20	16	61	30	80
32×1"	25×25	16	61	30	80
40×1/2"	32×15	16	61	30	80
40×3/4"	32×20	16	70	30	80
40×1"	32×25	16	70	30	80
40×1-1/4"	32×32	16	70	30	80
50×1/2"	40×15	16	77	30	98
50×3/4"	40×20	16	77	30	98
50×1"	40×25	16	81	30	98
50×1-1/4"	40×32	16	83	30	98
63×1/2"	50×15	16	92	30	105
63×3/4"	50×20	16	92	30	105
63×1"	50×25	16	96	30	105
63×1-1/4"	50×32	16	98	3Q	105
63×1-1/2"	50×40	16	95	30	105
75×1/2"	65×15	10	108	30	123
75×3/4"	65×20	10	108	30	123
75×1"	65×25	10	109	30	123
75×1-1/4"	65×32	10	111	30	123
75×1-1/2"	65×40	10	115	30	123
75×2"	65×50	10	115	30	123
90×1/2"	80×15	10	123	35	132
90×3/4"	80×20	10	123	35	132
90×1"	80×25	10	123	35	132
90×1-1/4"	80×32	10	123	35	132
90×1-1/2"	80×40	10	123	35	132
90×2"	80×50	10	123	35	132
110×1/2"	100×15	10	140	40	163
110×3/4"	100×20	10	140	40	163
110×1"	100×25	10	140	40	163
110×1-1/4"	100×32	10	140	40	163
110×1-1/2"	100×40	10	140	40	163
110×2"	100×50	10	140	40	163
125×1/2"	125×15	10	195	40	180
125×3/4"	125×20	10	195	40	180
125×1"	125×25	10	195	40	180
125×1-1/4"	125×32	10	195	40	180
125×1-1/2"	125×40	10	195	40	180
125×2"	125×50	10	195	40	180
