1/2"-8" plastic compact ball valve

Place of Origin:Zhejiang, China
Brand Name:HJ
Model Number:compact ball valve
Application:Home Kitchen, General, water system
Material:Plastic, PVC
Temperature of Media:Medium Temperature
Pressure:Medium Pressure
Power:Hydraulic
Media:Water
Port Size:1/2"-8"
Structure:Ball
Product name:plastic ball valve
Manufacturer:Factory, top one in China
Type:compact ball valve
Standard or Nonstandard:Standard
Supply Ability:12000 Carton/Cartons per Day

Product Details

SIZE: 1/2"-8"

END CONNECTOR: THREAD, SOCKET, FLANGE WORKING PRESSURE:1.OMPA

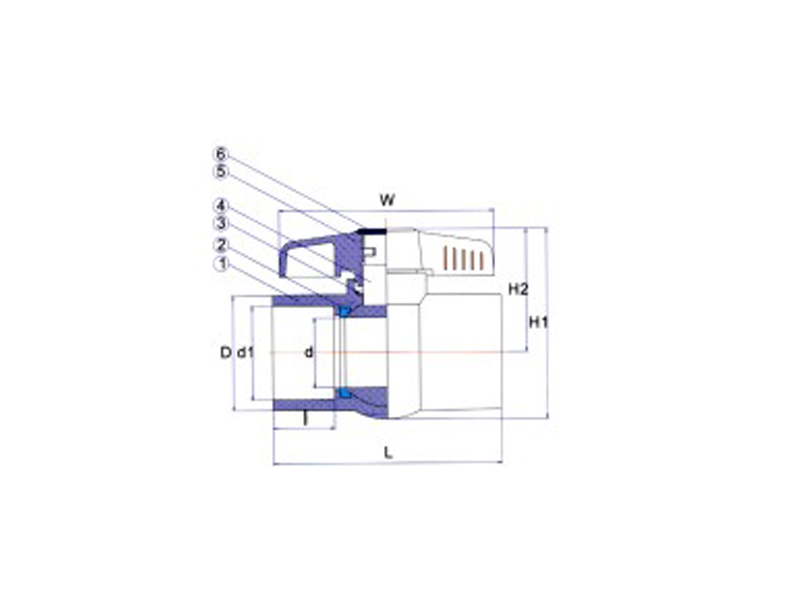

Speclfication of material
NO.	PART	MATERIAL	QTY
1	Body	PVC、CPVC、 PP	1
2	Seat Seal	TPV	1
3	O-Ring	EPDM、FPM(NBR)	2
4	Ball	PVC、CPVC、PP	2
5	Handle	PP、ABSx PVC	2
6	Cap	PP、ABSx PVC	2

Dimensions
size nom	DIN/GB d1	BS d1	ANSI d1	JIS d1	BSPT Thd./in	NPT Thd./in	d	D	L	I	W	H1	H2
DN15mm(1/2")	20	22	21.34	22	14	14	14.5	29	74.5	20	69	64	44.9
DN20mm(3/4")	25	26	26.67	26	14	14	20	35	85	22	74	73	52
DN25mm(1")	32	34	33.4	32	11	11.5	24	43	99	25	88	86.5	65
DN32mm(1-1/4")	40	42	42.16	38	11	11.5	30	52	108	25.5	101	97	70
DN40mm(1-1/2")	50	48	48.26	48	11	11.5	34	60	124	29	110	108	73.5
DN50mm(2")	63	60	60.33	60	11	11.5	44	75	141	35	126.5	127	81
DN65(2-1/2")	75	76	73.03	76	11	8	56	90	183	53	201.5	190	108.5
DN80mm(3")	90	89	88.9	89	11	8	71	107	227	66.5	201.5	182	116
DN100mm(4")	110	114	114.3	114	11	8	86	129	272	72	243	219	151.5
DN150mm(6")	160	165	168.3	165	11	8	130	187	390	100	300	310	180
DN200mm(8")	200	216	219.1	216	11	8	154	227	420	105	300	380	190
