1/2"-4" water supply pvc union ball valve

Place of Origin:Zhejiang, China
Brand Name:HJ
Model Number:true union ball valve-6
Application:General, water system
Temperature of Media:Medium Temperature
Power:Hydraulic
Media:Water
Port Size:1/2"-4"
Structure:Ball
Standard or Nonstandard:Standard
Product name:HJ manufacturer water supply pvc union ball valve
Type:true union ball valve
Supply Ability:12000 Carton/Cartons per Day
Packaging Details:The valve and fitting usually packed in carton or Bags. Customized packing is available

Product Details

SIZE: 1/2"-4"

END CONNECTOR: THREAD, SOCKET, FLANGE

WORKING PRESSURErl.OMPA

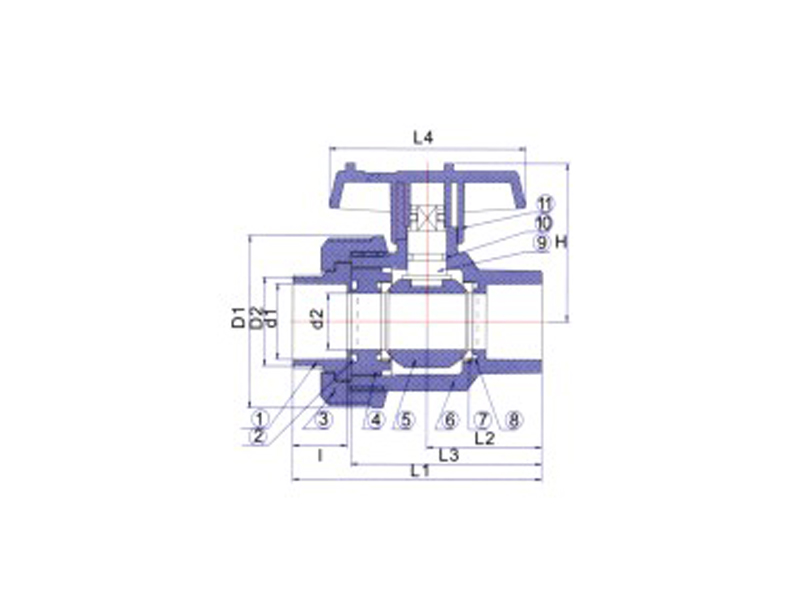

Specification of material
NO.	PART	MATERIAL	Q'TY	NO.	PART	MATERIAL	Q'TY
1	End Connector	PVC,CPVC,PP	1	7	Seat Seal	PTFE	2
2	Carrier O-Ring	EPDM、FPM(NBR)	1	8	O-Ring	EPDM,FPM(NBR)	2
3	Union Nut	PVC,CPVC,PP	1	9	Stem	PVC,CPVC,PP	1
4	Seal Carrier	PVC,CPVC,PP	1	10	Stem O-Ring	EPDM、FPM(NBR)	2
5	Ball	PVC,CPVC,PP	1	11	Handle	PP, ABS,PVC	1
6	Body	PVC,CPVC,PP	1

Dimensions
	DIN/GB d1	BS d1	ANSI d1	JIS d1	BSPT Thd./ln	NPT Thd./ln	62	D2	D1	1	L1	L2	L3	L4	H
DN15mm(1/2")	20	22	21.34	22	14	14	14	27.6	51.3	20.6	95.8	25.3	67.3	65	49.5
DN20mm(3/4")	25	26	26.67	26	14	14	18.7	35.2	65.5	25	112	32.4	78.3	74.9	56.5
DN25mm(1")	32	34	33.4	32	11	11.5	24	41.6	73.7	27.9	121.5	49.5	85.9	85	65
DN32mm(1-1/4")	40	42	42.16	38	11	11.5	32	49	86.6	27	130	57	99	97.1	76.5
DN40mm(1-1/2")	50	48	48.26	48	11	11.5	40	60.8	102	34.5	157.5	69	113.5	109.7	86.5
DN50mm(2")	63	60	60.33	60	11	11.5	50	74.5	120	40	190	81	136.5	133.5	102.5
DN65(2-1/2")	75	76	73.03	76	11	8	60	89	135	40	210	95.9	156	161	113.5
DN80mm(3"）	90	89	88.9	89	11	8	79	107.5	188	48	254.6	120.9	196.5	199.4	161.5
DN100mm(4")	110	114	114.3	114	11	8	99	132	215.5	56	294	140.7	225	240	174
