Place of Origin:Zhejiang, China
Brand Name:HJ
Model Number:true union ball valve-5
Application:General, water system
Temperature of Media:Medium Temperature
Power:Hydraulic
Media:Water
Port Size:1/2"-4"
StrucStandard or Nonstandard:Standard

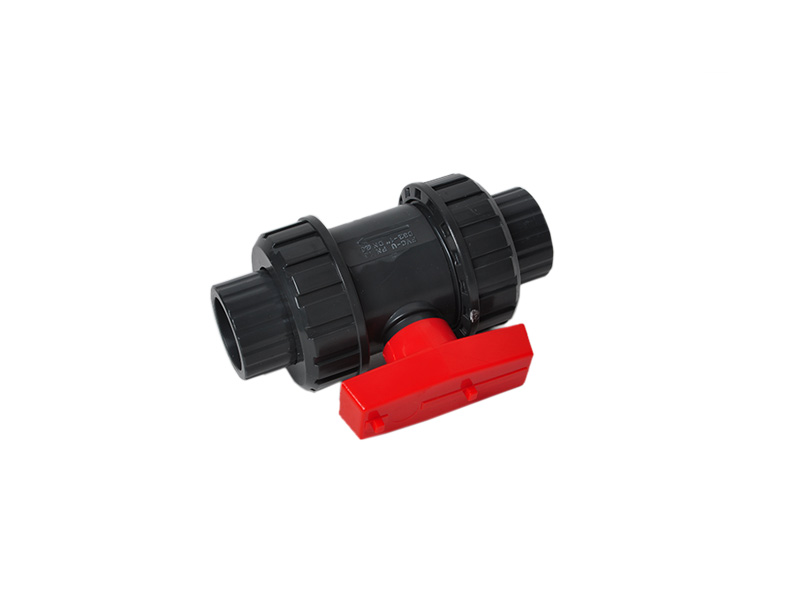

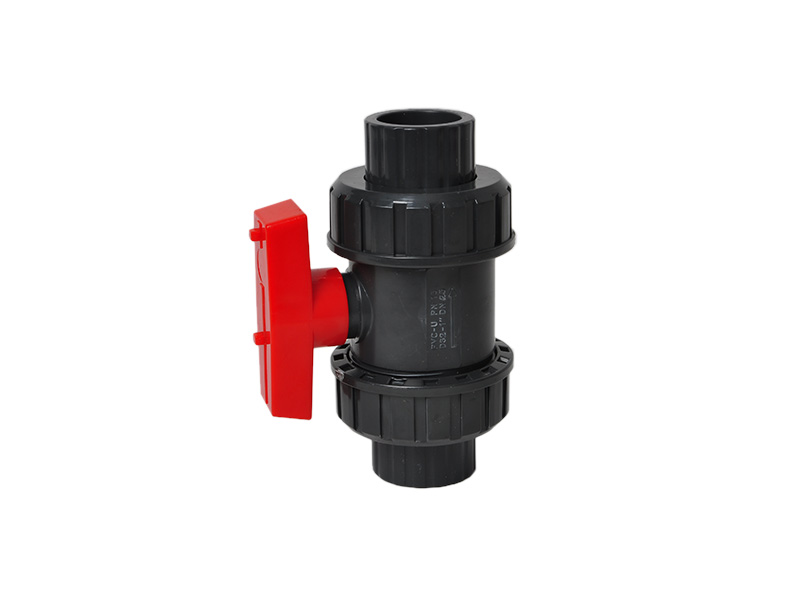

Product name:Wholesale high pressure pvc true union ball valve
Type:true union ball valve
Manufacturer:Factory, top one in China
Supply Ability:12000 Carton/Cartons per Day
Packaging Details:The valve and fitting usually packed in carton or Bags. Customized packing is available
Port:Ningbo/Shanghai
SIZE: 1/2"-4"
END CONNECTOR: THREAD, SOCKET
WORKING PRESSURE:1.0MPA

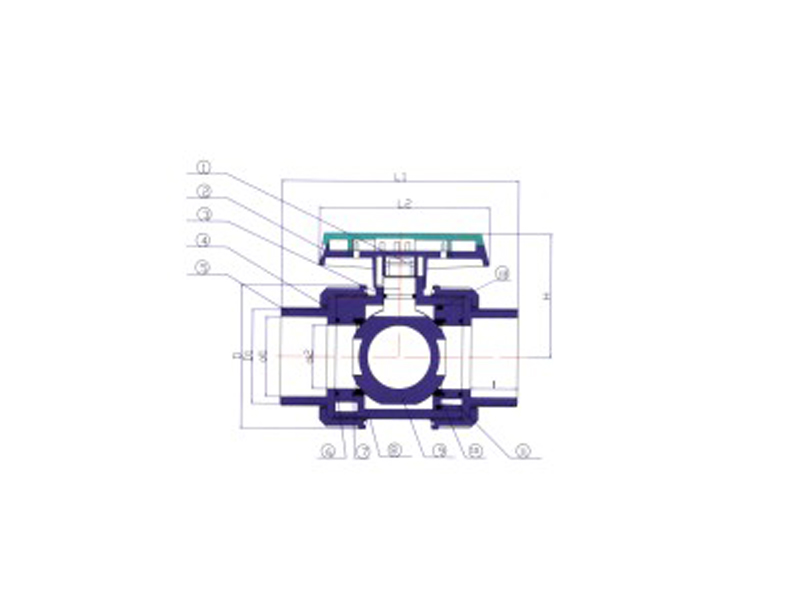

Specification of material |
|||||||
NO. |
PART |
MATERIAL |
Q'TY |
NO. |
PART |
MATERIAL |
Q'TY |
1 |
Stem |
PVC,CPVC,PP |
1 |
7 |
O-Ring |
EPDM.FPM(NBR) |
2 |
2 |
Handle |
ABS |
1 |
8 |
Body |
PVC.CPVC.PP |
1 |
3 |
Stem O-Ring |
EPDM、FPM(NBR) |
2 |
9 |
Ball |
PVC, CPVC, PP |
1 |
4 |
Union Nut |
I PVC, CPVC , PP |
2 |
10 |
Seat Seal |
PTFE |
2 |
5 |
End Connector |
PVC.CPVC, PP |
2 |
11 |
Seat Carrier |
PVC.CPVC, PP |
1 |
6 |
Body O-Ring |
EPDM、FPM(NBR) |
2 |
12 |
Carrier O-Ring |
EPDM.FPM(NBR) |
1 |
Dimensions |
|||||||||||||
size nom |
DIN/GB |
BS |
ANSI |
JIS |
BSPT |
NPT |
d2 |
D1 |
D |
1 |
L1 |
L2 |
H |
DN15mm(1/2") |
20 |
22 |
21.34 |
22 |
14 |
14 |
14 |
27.6 |
51.2 |
20.6 |
112.5 |
65 |
50.5 |
DN20mm(3/4") |
25 |
26 |
26.67 |
26 |
14 |
14 |
18.7 |
35.6 |
65.5 |
24.6 |
130.2 |
75 |
58.5 |
DN25mm(1") |
32 |
34 |
33.4 |
32 |
11 |
11.5 |
24 |
41.6 |
73.7 |
28 |
142.5 |
85 |
65.7 |
DN32mm(1-1/4") |
40 |
42 |
42.16 |
38 |
11 |
11.5 |
32 |
52 |
86.6 |
31 |
161 |
97 |
76.5 |
DN40mm(1-1/2") |
50 |
48 |
48.26 |
48 |
11 |
11.5 |
40 |
59.5 |
102 |
31.5 |
166.5 |
110 |
86 |
DN50mm(2") |
63 |
60 |
60.33 |
60 |
11 |
11.5 |
50 |
75 |
120 |
40 |
214 |
133.5 |
101.5 |
DN65mm(2-1/2") |
75 |
76 |
73.03 |
76 |
11 |
8 |
60 |
87.5 |
135 |
40 |
228 |
161 |
112.5 |
DN80mm(3") |
90 |
89 |
88.9 |
89 |
11 |
8 |
79 |
107.5 |
188 |
48 |
269 |
200 |
160.5 |
DN100mm(4") |
110 |
114 |
114.3 |
114 |
11 |
8 |
99 |
132 |
216 |
56 |
309 |
240 |
173.5 |
