A Practical Guide to Comparing chemical-resistant UPVC ball valve Models

Specifying the wrong valve in chemical-handling applications invites severe operational risks. Catastrophic leaks, sudden pressure drops, and safety compliance failures often trace back to a single mismatched component. Process engineers know these failures halt production and endanger personnel. Unplasticized polyvinyl chloride (UPVC) serves as a highly reliable, cost-effective industry standard. However, assuming all valves perform equally is a dangerous mistake. Variations in structural designs, internal seal materials, and manufacturing tolerances significantly alter long-term performance. A cheap valve might look identical to a premium industrial model but fail weeks into deployment. You need a transparent way to assess these differences. This guide provides an evidence-based framework for evaluating UPVC valve specifications against your exact process conditions. You will learn how to verify material limits, select the right structural design, and ensure flawless system integration.

Key Takeaways

• A reliable UPVC ball valve comparison must prioritize O-ring/seal material (EPDM vs. FPM/FKM) based on the specific chemical medium.

• UPVC is strictly limited to applications under 140°F (60°C); exceeding this requires stepping up to CPVC or PVDF.

• "True Union" models offer higher upfront costs but drastically reduce long-term maintenance downtime compared to compact/single-piece models.

• Proper integration with existing PVC pipe fittings dictates the required connection type (socket, threaded, or flanged).

Framing the Decision: Is UPVC the Correct Baseline Material?

Every engineering decision begins with defining operating limits. Unplasticized polyvinyl chloride (UPVC) provides excellent chemical resistance for countless industrial processes. However, it operates within a strict physical envelope. You must confirm your process conditions align with these material constraints before evaluating specific valve models.

The Operating Envelope

Temperature dictates thermoplastic performance. UPVC handles a maximum continuous operating temperature of 140°F (60°C). Exposing the material to temperatures beyond this threshold causes softening, deformation, and eventual blowout. Furthermore, you must account for pressure derating. Manufacturers typically rate UPVC valves for 150 PSI at 73°F (23°C). As ambient or media temperatures rise, the safe operating pressure drops significantly. A system running at 120°F (49°C) might only safely contain 60 PSI. You must consult specific pressure-temperature derating curves for your selected valve to ensure safe operation.

Baseline Alternatives Matrix for Chemical Valves

Decision Threshold

Review your system parameters carefully. First, document the absolute maximum temperature your process fluid will reach. Next, calculate the peak pressure spikes expected during operation. If these numbers fall safely within the UPVC thermal and pressure limits, you have established your baseline. Once you confirm UPVC as the appropriate housing material, the evaluation moves directly to specific structural comparisons.

UPVC Ball Valve Comparison: Core Structural Designs

Valve geometry dictates how easily you can maintain your system. While the exterior material remains constant, the internal structure determines flow efficiency and maintenance speed. Choosing the wrong structural design creates unnecessary bottlenecks and complicates routine repairs.

True Union (Double Block) vs. Compact (Single Piece)

Engineers categorize UPVC valves into two distinct families based on their housing construction. Your choice between them heavily influences future maintenance procedures.

• True Union Designs: This design features threaded union nuts on both ends of the valve body. By unscrewing these nuts, you can remove the central valve mechanism from the pipeline. You never have to cut the pipe. This "double block" capability makes True Union models the absolute standard for industrial chemical applications. They allow rapid seal replacement and system flushing.

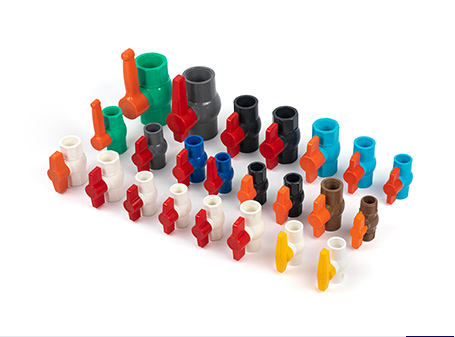

• Compact Designs: Manufacturers build compact valves as a single, sealed unit. You glue them directly into the pipeline. If the internal seals fail, you must cut the pipe, discard the entire valve, and cement a new one into place. We recommend compact valves only for low-risk, OEM, or water-treatment scenarios. In these environments, replacement costs remain lower than ongoing maintenance expenses.

Port Sizing (Full Port vs. Standard Port)

The internal bore diameter of the valve ball determines its flow coefficient (Cv). This metric measures the volume of water passing through the valve at a one PSI pressure drop.

Full port designs feature a bore matching the inner diameter of the connecting pipe. They create zero flow restriction when fully open. We highly recommend full port designs for particulate-heavy chemical slurries. This prevents internal blockage and eliminates cavitation risks. Standard port designs feature a restricted bore. They cost less but introduce a noticeable pressure drop. Use standard ports only when flow restriction does not impact system performance.

Handle and Actuation Readiness

Manual operation requires robust, ergonomic handles. Industrial environments often demand lockable levers. Lockable handles accept padlocks, ensuring full OSHA Lockout/Tagout (LOTO) compliance during maintenance. Non-lockable handles suffice for non-critical water lines.

Future automation requires specific mounting hardware. Look for valves featuring an ISO 5211 mounting pad. This standardized bracket sits beneath the manual handle. It allows you to seamlessly install pneumatic or electric actuators later. Upgrading a valve without this pad requires clumsy, unstable custom brackets.

Seal and Seat Materials: The Determining Factor in Chemical Resistance

A chemical-resistant plastic housing means nothing if the internal elastomers dissolve. The internal seats and O-rings maintain the fluid barrier. These soft components face constant exposure to aggressive media. Selecting the right elastomer is the most critical step in valve specification.

The "Seat" (PTFE/Teflon)

The ball rests inside the valve body against two circular sealing rings known as seats. Industry standards universally specify PTFE (commonly known as Teflon) for this component. PTFE offers near-universal chemical inertness. It withstands concentrated acids, highly aggressive alkalis, and potent organic solvents. Furthermore, PTFE features an incredibly low friction coefficient. This ensures the ball rotates smoothly without requiring excessive torque. Always confirm your chosen valve utilizes virgin PTFE seats.

Evaluating O-Ring Options

While PTFE handles the main ball seal, elastomeric O-rings seal the valve stem and the union ends. These O-rings must compress to form a tight barrier. Standard PTFE is too rigid for this task. Therefore, you must choose between two primary elastomer options.

• EPDM (Ethylene Propylene Diene Monomer): EPDM excels in water-based applications. It handles weak acids, moderate alkalis, and ozone exposure perfectly. However, EPDM possesses a fatal flaw. It swells and degrades rapidly when exposed to petroleum-based oils, hydrocarbons, or concentrated non-polar solvents. Never use EPDM in oil-handling applications.

• FPM/FKM (Viton): FKM compounds offer exceptional resistance to harsh chemicals. They handle aliphatic hydrocarbons, concentrated acids, and aggressive halogens like chlorine. When your process involves harsh organic solvents or petroleum products, FKM becomes mandatory. It costs more than EPDM but prevents catastrophic chemical leaks.

Risk Mitigation

Never guess chemical compatibility. You must cross-reference your specific chemical mixture, its concentration percentage, and its operating temperature against standard chemical resistance charts. Crucially, you must check the resistance for the seal material separately from the UPVC body. A 98% sulfuric acid solution might marginally pass for UPVC at room temperature, but it will rapidly destroy an EPDM O-ring. Protect your system by verifying every wetted material independently.

Connection Types and Integration with PVC Pipe Fittings

Your valve must connect seamlessly to the surrounding pipeline infrastructure. An incorrect connection choice creates weak points, leading to leaks under mechanical stress. You must match the valve connection to your specific installation environment.

Socket/Solvent Weld End

Socket ends provide a smooth inner bore designed to receive a pipe directly. Installers use chemical solvent cement to fuse the pipe and valve together. This creates a permanent, monolithic joint. You must ensure the socket matches your regional dimensional standards (such as ASTM for North America, or DIN/JIS for international systems).

Implementation carries specific risks. Solvent cements require strict curing times before you can apply pressure. Rushing the cure causes blowout failures. Additionally, you must verify the chemical compatibility of the solvent cement itself. Certain aggressive media can attack standard PVC glues over time, weakening the joint.

Threaded Ends (NPT/BSPT)

Threaded connections allow for mechanical assembly without chemical adhesives. They work perfectly for temporary installations or transition points between different piping materials (e.g., UPVC to stainless steel). Standard profiles include NPT (National Pipe Thread) and BSPT (British Standard Pipe Taper).

Thermoplastic threads demand careful handling. Over-tightening represents a severe risk. Applying excessive torque using large pipe wrenches causes thread stress cracking in the plastic housing. Always use appropriate thread sealants. Avoid expanding sealing pastes, as they create internal pressure that splits UPVC bodies. Use standard PTFE tape instead.

Flanged Ends

Flanged connections utilize a flat rim bolted to a matching pipeline flange. We position flanged valves in high-vibration environments, larger pipe diameters (typically 4 inches and above), or mixed-material pipelines. Flanges distribute mechanical stress effectively across a wide surface area.

Installation requires strict adherence to bolt-torqueing procedures. You must tighten the bolts in a crossing star-pattern. Applying too much torque to one side causes flange warping or cracking. Always insert a high-quality elastomer gasket between the flanges to ensure a leak-free seal.

Implementation Realities and Lifecycle Durability

Procurement teams often focus solely on the initial purchase price. However, deploying substandard components into aggressive chemical environments guarantees failure. True system efficiency relies on predictable durability and rigorous quality control during manufacturing.

Upfront Cost vs. Lifecycle Durability

Challenging the assumption that cheaper components save money remains vital. Purchasing the cheapest UPVC ball valve often leads to disastrous outcomes in harsh environments. Low-cost manufacturers frequently use recycled plastic blends, thin out the housing walls, and install low-grade elastomers. These compromises result in premature seal failure and cracked bodies. The money saved on the initial purchase evaporates instantly during the first unexpected shutdown. Prioritize valves engineered for maximum lifecycle durability.

Quality Assurance & Compliance

Visual inspections cannot verify structural integrity. You must demand valves subjected to 100% factory pressure testing. Reputable manufacturers test every single unit with air or water before shipping. This guarantees the seals sit properly and the housing contains zero microscopic defects.

Furthermore, identify necessary certifications based on your specific application. If the valve handles potable water, it requires NSF/ANSI 61 certification to ensure no toxic chemicals leach into the drinking supply. Verify the manufacturer operates under ISO 9001 quality management standards to ensure consistent production tolerances.

Common Rollout Pitfalls

Even premium valves fail when installed incorrectly. Mechanical stress destroys thermoplastic housings rapidly. Pipe misalignment represents the most common installation error. Forcing a valve to bridge a gap between two misaligned pipes puts enormous shear stress on the valve body. Eventually, the plastic snaps. Always use proper pipe hangers and supports.

Water hammer presents another severe threat. Rapidly closing a ball valve sends a shockwave through the fluid. This pressure spike easily exceeds the pressure rating of the plastic housing, causing it to shatter. Mitigate this risk by training operators to close manual valves slowly, or by installing slow-closing electric actuators.

Conclusion

Selecting the ideal valve requires a disciplined, step-by-step approach. You must summarize your decision tree logically. First, confirm your system temperature remains safely below the 140°F (60°C) UPVC threshold. Second, verify chemical compatibility for both the UPVC body and the specific internal seals (EPDM or FKM). Third, select a structural design that matches your maintenance strategy, prioritizing True Union models for industrial applications. Finally, choose the connection type that best integrates with your existing pipeline infrastructure.

Your next steps require rigorous verification. We advise technical buyers to request material test reports (MTRs) from suppliers. Do not rely on generic charts. Consult manufacturer-specific chemical resistance matrices for the exact valve model before finalizing any procurement. Diligence during the specification phase guarantees decades of safe, leak-free operation.

FAQ

Q: Can I use a UPVC ball valve for compressed air lines?

A: No. You should never use UPVC valves or piping for compressed air or gas lines. UPVC becomes brittle over time. If a failure occurs under gas pressure, the plastic shatters explosively, sending dangerous shrapnel across the facility. Always use metal components or specially rated composite materials for compressed gas applications to ensure personnel safety.

Q: How do I choose between EPDM and FKM seals for my UPVC valve?

A: Your choice depends entirely on the chemical medium. Use EPDM for water, mild acids, and alkalis. Use FKM (Viton) for harsh chemicals, halogens, and aggressive organic solvents. Always check the exact chemical concentration and operating temperature against a reliable elastomer compatibility chart before making a final selection.

Q: Are UPVC ball valves UV resistant for outdoor installations?

A: Standard UPVC suffers from UV degradation. Prolonged exposure to direct sunlight causes the material to discolor, chalk, and lose its impact resistance. If you must install the valve outdoors, you should paint it with a light-colored, water-based latex paint, install a physical shield, or specify specially formulated UV-stabilized models.

Q: Can a socket-welded UPVC valve be repaired if it leaks?

A: Repairability depends entirely on the structural design. If you installed a True Union valve, you can simply unscrew the union nuts, remove the central body, and replace the internal seals. If you installed a compact, single-piece valve, you cannot repair it. You must cut it out of the pipeline completely and glue in a replacement.
